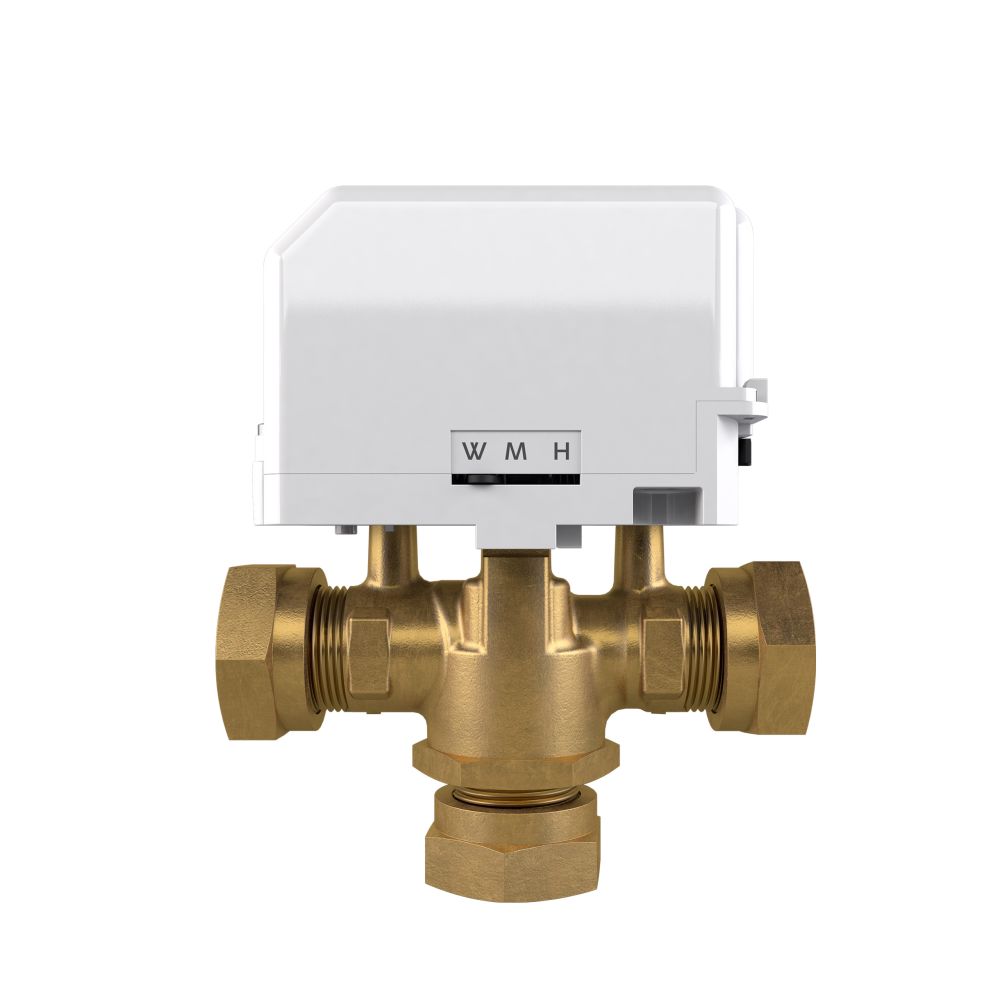

The Drayton 28mm 3 Port Diverter Valve & Snap-On Actuator (No Switch) is a motorised valve assembly designed for efficient control of water flow between heating and hot water circuits in larger domestic systems. Key features include:

• 28mm compression connections, ideal for high-flow installations

• Three-port diverter configuration, directing flow to either heating or hot water as needed

• Snap-on actuator, allowing tool-free removal and replacement via a push-button release

• Spring return mechanism, ensuring reliable valve closure when power is off

• Manual lever and valve position indicator, aiding setup and diagnostics

• Replaceable actuator and motor, supporting long-term serviceability

• 230V AC operation at approx. 5 watts, with tight shut-off for leak-free performance

• No internal switch, suitable for systems where external switching is managed separately

A robust and installer-friendly solution for zoning in central heating systems.
